JBC 智能焊台

PHS红外预热设备

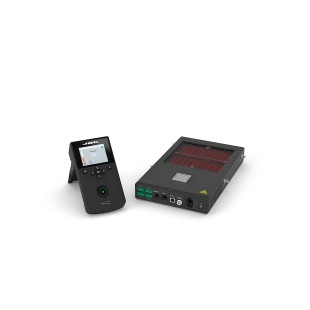

PHS 红外预热设备

Heating area 130 x 135 mm

The Heater Set makes easier any soldering or desoldering job by applying infrared heat.

It allows you to work with lower temperatures, increase the tip life and reduce thermal stress.

By using the console you can select 2 independent heating zones and the operation mode: by power or by temperature.

JBC offers you 3 predefined temperature profiles and 20 more to personalize. Once a profile has been run, you can work without thermocouple.



技术参数:

尺寸:195 x 288 x 41 mm

保险丝:8 A T (100V & 120V), 4 A T (230V)

加热面积:65 or 130 x 135 mm (2 zones)

JBC设定的温度曲线:3 profiles ( 2, 3 or 4 steps)

最大功率:500W

最大工作时间:600min. or indefinite

包装尺寸:368 x 368 x 125 mm

包装重量:3.64 kg

温度测量:Thermocouple type K

温度范围:50 to 250C (120 to 482F)

用户配置文件:20 (up to 6 steps for each)

电压:120V / 230V / 100V

重量:2.90 kg
