PHS-KB成套红外预热设备

PHS-KB 成套红外预热设备

This is a complete system for preheating multilayer PCBs by applying infrared.

It is ideal for repetitive jobs since the system

is able to run a specific temperature profile

without the need of a thermocouple.

JBC offers you 3 predefined temperature

profiles and 10 more to personalize.

Using the console you can select the mode of operation: by power or by temperature.

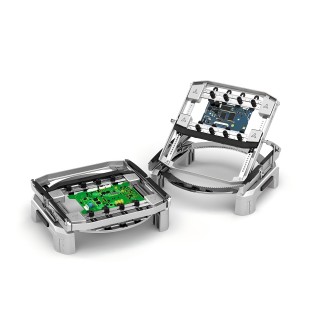

The Heater Unit works with 1 or 2 heating zones and the PCB Support has 3 adjustable heights.



技术参数:

尺寸(加热主机):195 x 288 x 41 mm

保险丝:8 A T (100V & 120V), 4 A T (230V)

加热面积:65 x 135 mm (1 zone)

JBC设定的温度曲线:3 profiles ( 2, 3 or 4 steps)

最大功率:500W

最大工作时间:600 min. or indefinite

包装尺寸:368 x 368 x 195 mm

包装重量:5.96 kg

温度测量:Thermocouple type K

温度范围:50 to 250C (120 to 482F)

用户温度分布:20 (up to 6 steps for each)

电压:120V / 230V / 100V

重量:4.91 kg
